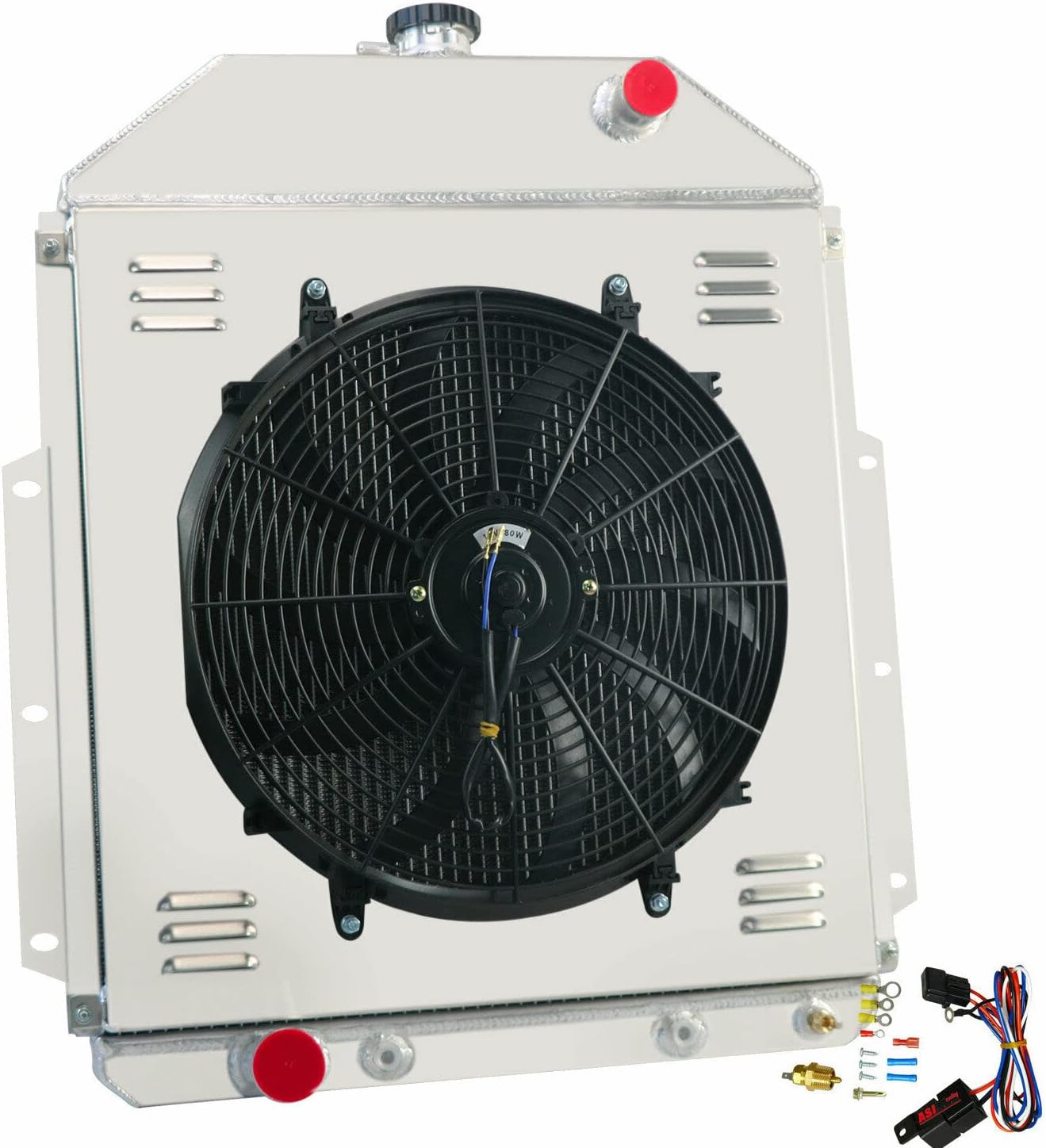

4 Row Core Aluminum Radiator Shroud fan fit 1942-1947 1949-1952 Ford 42-47 1 1/2 3/4 Ton Pickup 49-52 F1 F2 F3 F4 3.7L L6 3.6L 3.9L V8 43 44 45 46 47 48 49 radiador de aluminio

Fitment: For Ford 1 Ton Pickup 1 Ton -- 1945-1947 For Ford 1 Ton Pickup Base 2.0L l4 GAS 1942/Base 3.7L l6 GAS 1942,1946-1947 For Ford 1 Ton Pickup Base 3.6L/3.9L V8 GAS 1942-1947 For Ford 1/2 Ton Pickup 1/2 Ton -- 1945-1947 For Ford 1/2 Ton Pickup Base 2.0L l4 GAS 1942 For Ford 1/2 Ton Pickup Base 3.6L/3.9L V8 GAS 1942-1947 For Ford 1/2 Ton Pickup Base 3.7L l6 GAS 1942,1946-1947 For Ford 3/4 Ton Pickup Base 2.0L l4 GAS 1942 For Ford 3/4 Ton Pickup Base 3.6L/3.9L V8 GAS 1942-1947 For Ford 3/4 Ton Pickup Base 3.7L l6 GAS 1942,1946-1947 For Ford F1/F2/F3/F4 Base 3.5L l6 GAS 1951-1952 For Ford F1/F2/F3/F4 Base 3.7L l6 GAS 1949-1952 For Ford F1/F2/F3/F4 Base 3.9L V8 GAS 1949-1952 FAN SPEC: Maximum Fan CFM: 2000±200 Fan Diameter (in): 16.050 inches Thickness (in): 2.790 inches Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Radiator Details: ROWS : 4 ROWS CORE Core Dimensions (H x W): 21 1/2" x 20 7/8" Overall Dimensions (H x W): 27 5/8" x 24 3/4" Hose Locations: IN: Passenger / OUT: Driver Hose Fittings: IN: 1 1/2" - OUT: 1 3/4" Trans Cooler Details: 1/2-20 Straight Thread, G 1/4 Mounting Type: BRACKET MOUNT Mounting Type: BRACKET MOUNT Mounting Style: Screw-On Relay Kit Instructions: RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Thermostat Relay Kit: Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included. Probe typically threads into radiator, water outlet or manifold.

• ★For Ford F-Series F1 F2 F3 Pickup V8 GAS 1942-1952;Trans Cooler: 1/2-20 Straight Thread, G 1/4; Part Number: CC4252FD,SBR4252FD,MC4252FD,EC4252FD,AL091031ANDZ,091032ANN,091032AND,091030SNN,BZAC-489-1,820ZAC4891,091031ANN,091031AND
• ★High Quality: Cubauto 4 Row Aluminum Radiator is welded in vacuum brazing furnace, no epoxy, all item is 100% inspected and tested for quality assurance.
• ★This all Aluminum Radiator Includes CNC machined filler neck and cap,OEM Style Brass Petcock Drain; Direct OE replacement with drop-in precise fitment and easy installation.
• ★Aluminum Radiator: All-aluminum design with durable TIG-welded construction (AA5052 aircraft aluminum) ;High performance racing design, improves cooling by 35 -45% Temp.
• ★Note: 100% Leak Tested, 4 Rows, Downflow Radiator Shroud Fan, Durability Tested； 1-Year Warranty for Every Item .Do not hesitate to get one! This Listing Is Including: 1 X 4-Row Aluminum Radiator (Includes Radiator Cap); 1 X Aluminum Shroud; 1 X 16" Fans (Includes mounting kits); 1 X Thermostat Relay Kit
